Filter box F7 with round pipe connection in various sizes

• for installation in ventilation systems, prevents dirt and dust from infiltrating • galvanised housing made of steel sheet • highly efficient filter bag • can be washed 10 - 14 times


Item number 916141

delivery time ca. 3 - 5 days


* Incl. VAT excl. Shipping



Dimensions and technical details

  • Housing made of galvanised steel sheet, synthetic glass fibre filter
  • Size selectable: NW 100 to NW 400
  • For installation in ventilation systems (always infront of the fan or sound absorber in direction of the airflow)
  • Prevents dirt and dust from infiltrating the system
  • Latches can be opened to remove cover during inspection and filter replacement
  • Connections with rubber lip seal
  • The sizes are coordinated with the size of the duct
  • Mount in any position
  • There must be sufficient clearance space according to dimension D to replace the filter
  • Highly efficient filter bag with filter grade F7, made of regenerative synthetic fibre
  • Can be washed 10 to 14 times
  • Max. temperature of transported air: + 60°C
  • Deposit ca. 98 %
  • Absorbed dust ca. 88 g/m²
Type Item description, nominal width
RLFB7 100 Filter box F7, galvanised steel, detachable cover, NW 100
RLFB7 125 Filter box F7, galvanised steel, detachable cover, NW 125
RLFB7 160 Filter box F7, galvanised steel, detachable cover, NW 160
RLFB7 200 Filter box F7, galvanised steel, detachable cover, NW 200
RLFB7 250 Filter box F7, galvanised steel, detachable cover, NW 250
RLFB7 315 Filter box F7, galvanised steel, detachable cover, NW 315
RLFB7 355 Filter box F7, galvanised steel, detachable cover, NW 355
RLFB7 400 Filter box F7, galvanised steel, detachable cover, NW 400



Type ø d (mm) B (mm) C (mm) D (mm) H (mm) L (mm) Weight (kg)
RLFB7 100 100 204 400 180 204 480 3.5
RLFB7 125 125 204 400 180 204 48 3.5
RLFB7 160 160 294 400 271 295 480 4.3
RLFB7 200 200 294 400 271 295 480 4.3
RLFB7 250 250 424 480 361 385 600 5.2
RLFB7 315 315 424 480 361 385 600 5.2
RLFB7 355 355 n/a n/a n/a n/a n/a n/a
RLFB7 400 400 n/a n/a n/a n/a n/a n/a

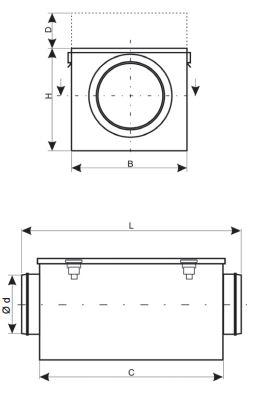

Dimensions Filter box F7 with round pipe connection in various sizes

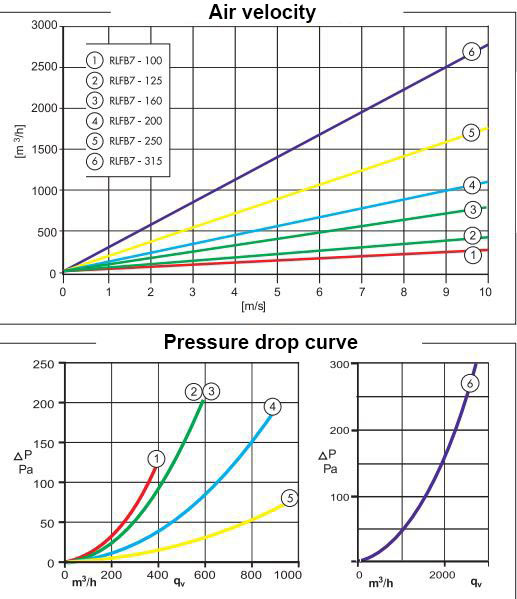

Diagram air speeds and pressure drop curve for Filter box F7
